FDA Diaphragm Pumps

Phoenix FOOD pneumatic double diaphragm pumps , thanks to their construction features, can be used for handling and pumping products for the food and cosmetic industry. Phoenix FOOD diaphragm pumps are made with FDA certified construction materials. The parts in contact with the fluid, in fact, are exclusively electropolished AISI 316 and PTFE, both certified for food use. These pumps are able to handle fluids with very high viscosities and temperatures that can reach 95 ° C.

  • PF18
  • PF30
  • PF60
  • PF120
  • PF170
  • PF400
  • PF700
  • PF1000

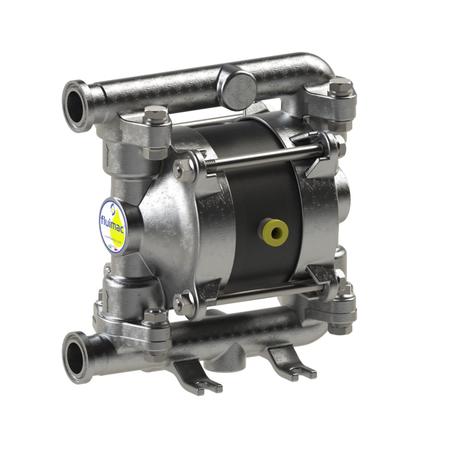

PF18


  • Fluid Connections : 3/4” TRI-CLAMP
  • Air connection : 6 mm
  • Max flow rate : 20 lt/min
  • Max air pressure : 7 bar
  • Max delivery head : 70 m
  • Max Suction Lift Dry : 5 m
  • Max Suction Lift Wet : 9,8 m
  • Max Solid passing : 2,5 mm
  • Noise level : 65 dB
  • Max viscosity : 10.000 cps
  • Volume per shot : 30 CC ~
Sr.No. Name Click To View
1 Data Sheet P18 - FOOD

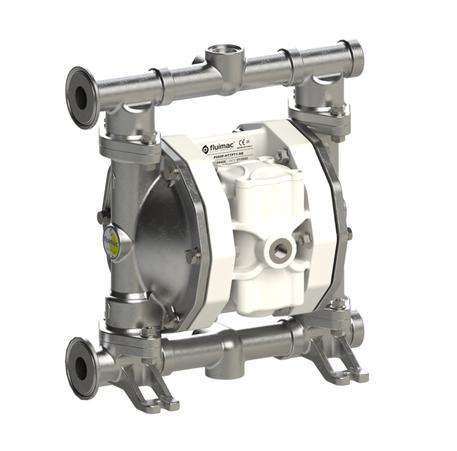

PF60


  • Fluid Connections : 1" TRI-CLAMP
  • Air connection : 1/4" BSP
  • Max flow rate : 65 lt/min
  • Max air pressure : 8 bar
  • Max delivery head : 80 m
  • Max Suction Lift Dry : 5 m
  • Max Suction Lift Wet : 9,8 m
  • Max Solid passing : 3,5 mm
  • Noise level : 72 dB
  • Max viscosity : 20.000 cps
  • Volume per shot : 140 CC ~

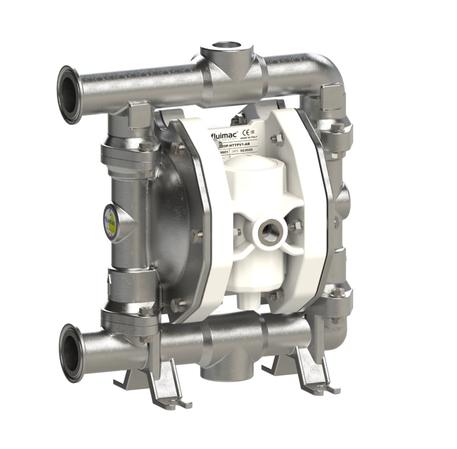

PF120


  • Fluid Connections : 1"1/2 TRI-CLAMP
  • Air connection : 3/8" BSP
  • Max flow rate : 120 lt/min
  • Max air pressure : 8 bar
  • Max delivery head : 80 m
  • Max Suction Lift Dry : 5 m
  • Max Suction Lift Wet : 9,8 m
  • Max Solid passing : 4 mm
  • Noise level : 72 dB
  • Max viscosity : 25.000 cps
  • Volume per shot : 200 CC ~

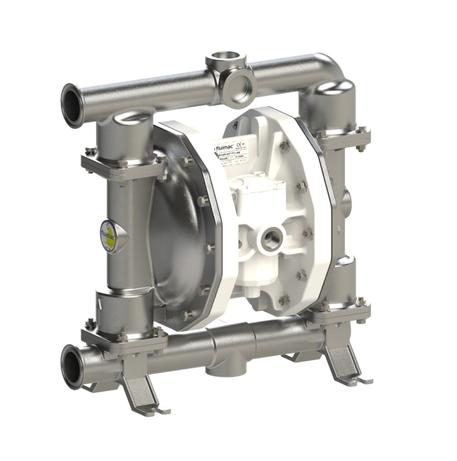

PF170


  • Fluid Connections : 1"1/2 TRI-CLAMP
  • Air connection : 1/2" BSP
  • Max flow rate : 170 lt/min
  • Max air pressure : 8 bar
  • Max delivery head : 80 m
  • Max Suction Lift Dry : 5 m
  • Max Suction Lift Wet : 9,8 m
  • Max Solid passing : 7,5 mm
  • Noise level : 75 dB
  • Max viscosity : 35.000 cps
  • Volume per shot : 700 CC ~
Sr.No. Name Click To View
1 Data Sheet P170 - FOOD

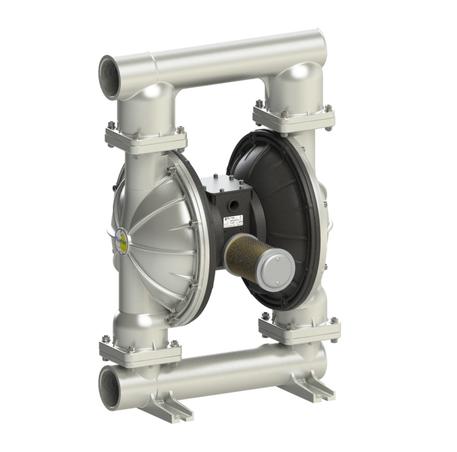

PF1000


  • Fluid Connections : 3” BSP
  • Air connection : 3/4" BSP
  • Max flow rate : 1050 lt/min
  • Max air pressure : 8 bar
  • Max delivery head : 80 m
  • Max Suction Lift Dry : 5 m
  • Max Suction Lift Wet : 9,8 m
  • Max Solid passing : 12 mm
  • Noise level : 82 dB
  • Max viscosity : 55.000 cps
  • Volume per shot : 9750 CC ~

PF30


  • Fluid Connections : 1 ”TRI-CLAMP
  • Air connection : 6 mm
  • Max flow rate : 35 l / min
  • Max pressure : 7 bar
  • Max head : 70 m
  • Max dry suction : 5 m
  • Suction with fluid Max : 9.8 m
  • Max solid passage : 3 mm
  • Noise level : 65 dB
  • Max viscosity : 15,000 cps
  • Volume per shot : 65 CC ~
# Name Click To View
1 P30 FOOD Technical Sheet

PF400


  • Fluid Connections : 2 "TRI-CLAMP
  • Air connection : 1/2 "BSP
  • Max flow rate : 380 lt / min
  • Max pressure : 8 bar
  • Max head : 80 m
  • Max dry suction : 5 m
  • Suction with fluid Max : 9.8 m
  • Max solid passage : 8 mm
  • Noise level : 78 dB
  • Max viscosity : 40,000 cps
  • Volume per shot : 1200 CC ~
# Name Click To View
1 P400 FOOD Technical Sheet

PF700


  • Fluid Connections : 2 "1/2 TRI-CLAMP
  • Air connection : 3/4 "BSP
  • Max flow rate : 700 lt / min
  • Max pressure : 8 bar
  • Max head : 80 m
  • Max dry suction : 5 m
  • Suction with fluid Max : 9.8 m
  • Max solid passage : 8.5 mm
  • Noise level : 78 dB
  • Max viscosity : 50,000 cps
  • Volume per shot : 3050 CC ~
# Name Click To View
1 P700 FOOD Technical Sheet
