Hose Pump





Home Hose Pump

Hose Pumps

  • I12 - Hose Pump
  • I17 - Hose Pump
  • I21 - Hose Pump
  • I28 - Hose Pump
  • I35 - Hose Pump
  • I43 - Hose Pump
  • I55 - Hose Pump

I12 - Hose Pump


  • Max. Flow (continuous) : 205 l/h
  • Capacity : 0.043 l/rev
  • Max. Discharge Pressure : 10bar
  • Max. Temperature : 80C
  • Inner Diameter : 12 mm
  • Hose Material : NR, EPDM and NBR (Food Grade)
  • Connections Material : AISI-316, PP, PVDF (PTFE)
  • Pump Casign Material : Alluminium (Powder Coated)
  • Rollers Material : Hard Alluminium (Anodized)
Sr.No. Name Click To View
1 Technical Sheet I12

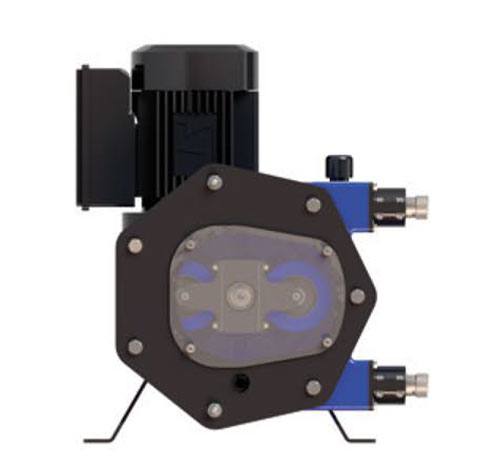

I17 - Hose Pump


  • Max. Flow (continuous) : 500 l/h
  • Capacity : 0.109 l/rev
  • Max. Discharge Pressure : 10bar
  • Max. Temperature : 80C
  • Inner Diameter : 16 mm
  • Hose Material : NR, EPDM and NBR (Food Grade) & Hypalon
  • Connections Material : AISI-316, PP, PVDF (PTFE)
  • Pump Casign Material : Alluminium (Powder Coated)
  • Rollers Material : Hard Alluminium (Anodized)
Sr.No. Name Click To View
1 Technical Sheet I17

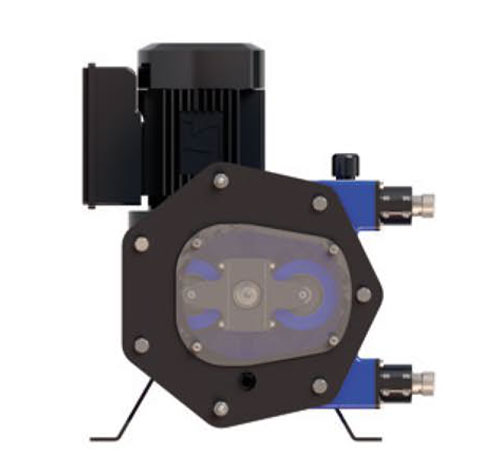

I21 - Hose Pump


  • Max. Flow (continuous) : 1100 l/h
  • Capacity : 0.227 l/rev
  • Max. Discharge Pressure : 10bar
  • Max. Temperature : 80C
  • Inner Diameter : 22 mm
  • Hose Material : NR, EPDM and NBR (Food Grade) & Hypalon
  • Connections Material : AISI-316, PP, PVDF (PTFE)
  • Pump Casign Material : Alluminium (Powder Coated)
  • Rollers Material : Hard Alluminium (Anodized)
Sr.No. Name Click To View
1 Technical Sheet I21

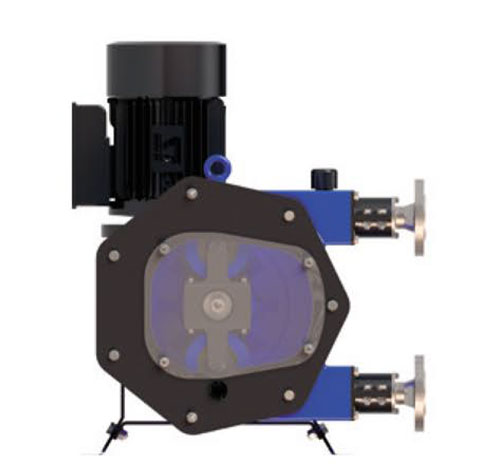

I28 - Hose Pump


  • Max. Flow (continuous) : 1900 l/h
  • Capacity : 0.47 l/rev
  • Max. Discharge Pressure : 10bar
  • Max. Temperature : 80C
  • Inner Diameter : 28 mm
  • Hose Material : NR, EPDM and NBR (Food Grade)
  • Connections Material : AISI-316, PP, PVDF (PTFE)
  • Pump Casign Material : Alluminium (Powder Coated)
  • Rollers Material : Hard Alluminium (Anodized)
Sr.No. Name Click To View
1 Technical Sheet I28

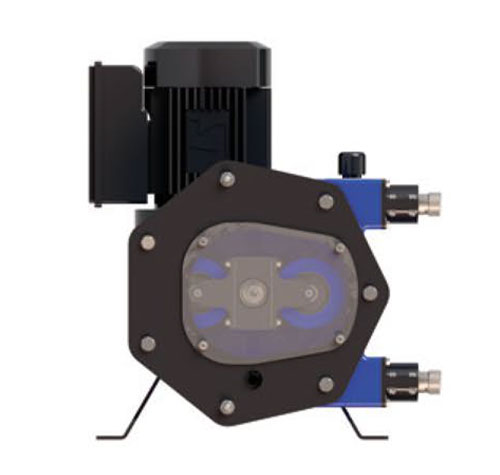

I35 - Hose Pump


  • Max. Flow (continuous) : 3600 l/h
  • Capacity : 0.89 l/rev
  • Max. Discharge Pressure : 10bar
  • Max. Temperature : 80C
  • Inner Diameter : 35 mm
  • Hose Material : NR, EPDM and NBR (Food Grade)
  • Connections Material : AISI-316, PP, PVDF (PTFE)
  • Pump Casign Material : Alluminium (Powder Coated)
  • Rollers Material : Hard Alluminium (Anodized)
Sr.No. Name Click To View
1 Technical Sheet I35

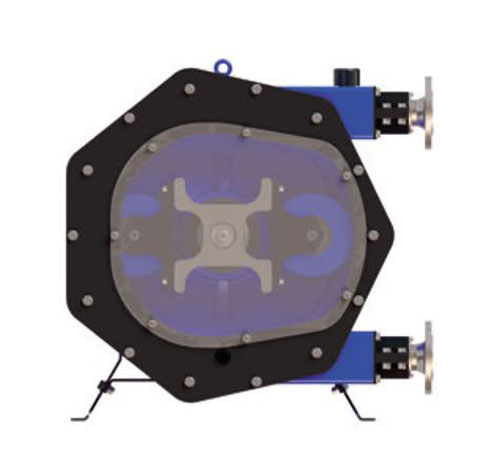

I43 - Hose Pump


  • Max. Flow (continuous) : 7000 l/h
  • Capacity : 1.69 l/rev
  • Max. Discharge Pressure : 10bar
  • Max. Temperature : 80C
  • Inner Diameter : 43 mm
  • Hose Material : NR, EPDM and NBR (Food Grade)
  • Connections Material : AISI-316, PP, PVDF (PTFE)
  • Pump Casign Material : Alluminium (Powder Coated)
  • Rollers Material : Hard Alluminium (Anodized)
Sr.No. Name Click To View
1 Technical Sheet I43

I55 - Hose Pump


  • Max. Flow (continuous) : 13000 l/h
  • Capacity : 3.71 l/rev
  • Max. Discharge Pressure : 10bar
  • Max. Temperature : 80C
  • Inner Diameter : 55 mm
  • Hose Material : NR, EPDM and NBR (Food Grade)
  • Connections Material : AISI-316, PP, PVDF (PTFE)
  • Pump Casign Material : Alluminium (Powder Coated)
  • Rollers Material : Hard Alluminium (Anodized)
Sr.No. Name Click To View
1 Technical Sheet I55
