Pneumatic Pulsation Dampeners

The range of pneumatic pulsation dampener series DAMPER was developed with a new technology, which guarantees an optimal solution to minimize the pulsation effect of the flow. The high damping capacity can be up to 90%. The pulsation dampeners series DAMPER, not require adjustament or pre-loading, but it adapt to the fluid curve, automatically. The DAMPER products, mounted on the delivery of double diaphragm pumps, drastically reduce the pulsation, the hammerings and the vibrations of the pump.

  • DAMPER 20
  • DAMPER 25
  • DAMPER 40
  • DAMPER 50

DAMPER 20


  • Fluid Connections : 3/4" BSP
  • Air connection : 6 mm
  • Max air pressure : 8 bar
  • Capacity Volume : 80 CC~
  • Apply to : PHOENIX 7-18-30

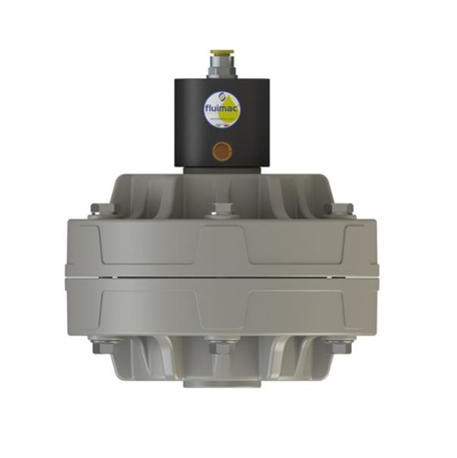

DAMPER 25


  • Fluid Connections : 1" BSP
  • Air connection : 8 mm
  • Max air pressure : 8 bar
  • Capacity Volume : 200 CC~
  • Apply to : PHOENIX 55-60-90-120

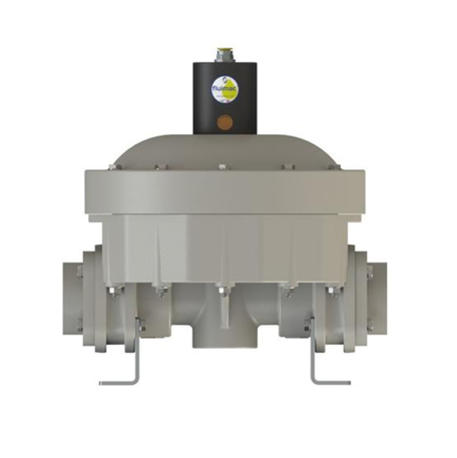

DAMPER 50


  • Fluid Connections : 2" BSP
  • Air connection : 12 mm
  • Max air pressure : 8 bar
  • Capacity Volume : 2900 CC~
  • Apply to : PHOENIX 700-1000

DAMPER 40


  • Fluid Connections : 1"1/2 BSP
  • Air connection : 10 mm
  • Max air pressure : 8 bar
  • Capacity Volume : 700 CC~
  • Apply to : PHOENIX 170-252-400
